Evolution R210SMS+ Mitre Saw Review: Performance Meets Value for Serious DIYers

For anyone dedicated to DIY projects, choosing the right mitre saw can significantly enhance both the quality and efficiency of your work. A mitre saw isn't just about making crosscuts; it’s essential for achieving precise bevels and mitres, ensuring that every piece of trim, architrave, or decking fits perfectly. I've put the Evolution R210SMS+ 210mm Sliding Compound Mitre Saw to the test to see if it holds up to its promises.

Features and Specifications

• Motor: 1500W
• Maximum Mitre Angle: 50 degrees / -50 degrees
• Maximum Bevel Angle: 45 degrees
• Weight: 11.2kg
• Cord Length: 3m
• Blade Diameter: 210mm
• Max Cut Depth: 65mm (38mm at 45 degrees)
• No Load Speed: 3750 RPM
• Warranty: 3 years limited
• Key Features: Multi-material blade, laser guidance, trench cut capability, 230mm slide, integrated handles

Unboxing and Assembly

The unboxing experience sets the stage for the Evolution R210SMS+. The packaging is compact, suggesting careful design, and easy to transport despite the saw's nearly 14kg weight. Inside, the saw components are securely organized. Notably, the blade comes separately; the included multi-purpose blade is engineered for cutting wood, plastic, and mild steel.

The build quality strikes a balance between metal and plastic, ensuring durability without being overly heavy. Once unpacked, elements include a dust bag, machine table extensions, and clamps for securing materials. Assembly requires attaching the sliding carriage and blade, alongside some additional parts.

Although the assembly process is straightforward, clear instructions would have been beneficial, especially when attaching the blade. I encountered some difficulty loosening the flange bolt initially, which required a bit of extra force and lubrication. However, understanding the assembly enhances familiarity with the tool's features, making it beneficial for first-time users.

Testing Performance

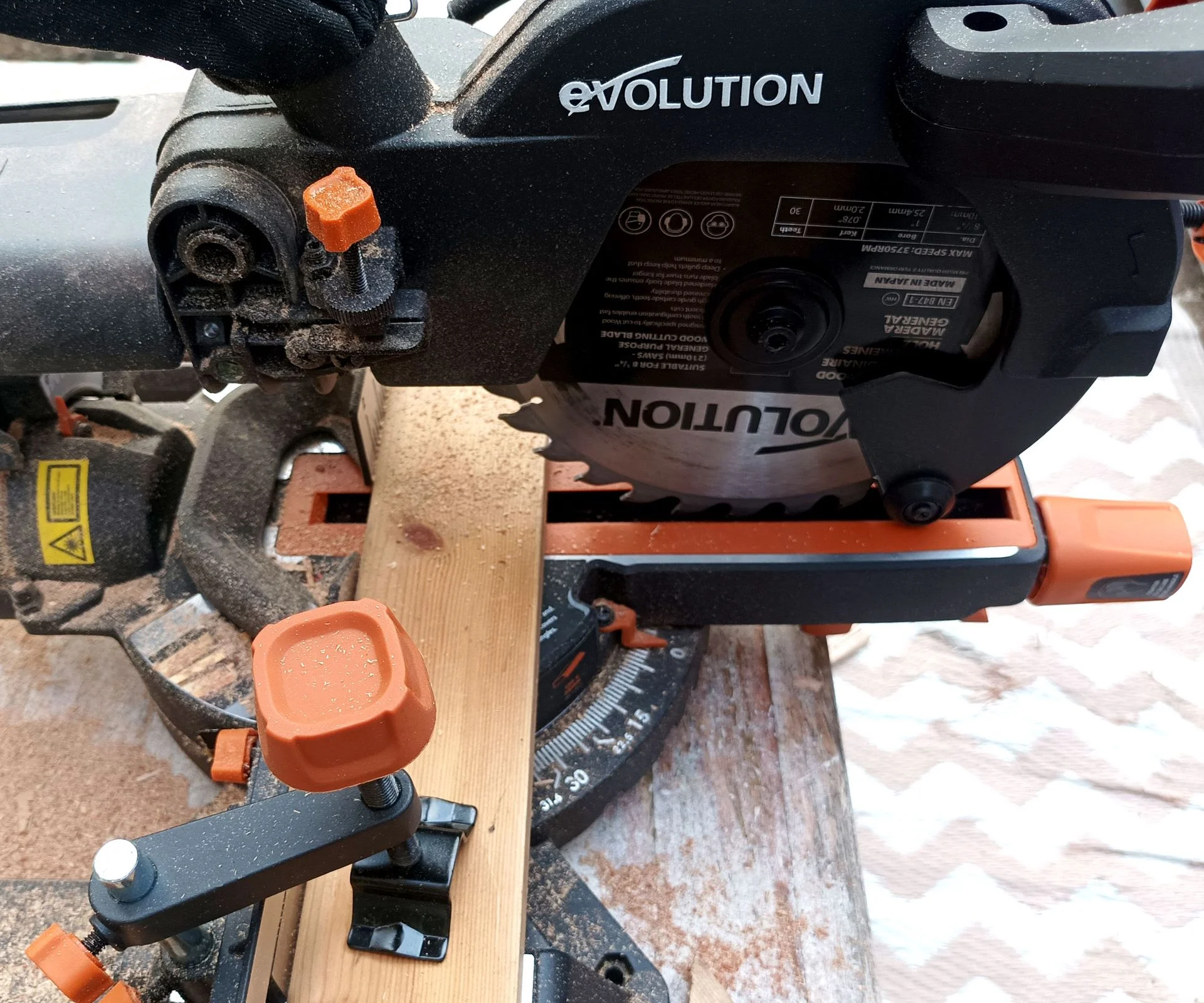

With assembly complete, the Evolution R210SMS+ was ready to cut. I started with a variety of materials, including plastic pipes and metal strips, which the saw managed effortlessly. Moving on to wood, I executed crosscuts in plywood, MDF, and both softwood and hardwood. The hold-down and front clamps helped secure the pieces effectively, although the front clamp could benefit from a design tweak for thinner materials.

The saw boasts a maximum cutting width of 230mm and a depth of 65mm, meeting the requirements for a range of applications like shelving and flooring. Verification of these figures confirmed that the specifications are indeed accurate.

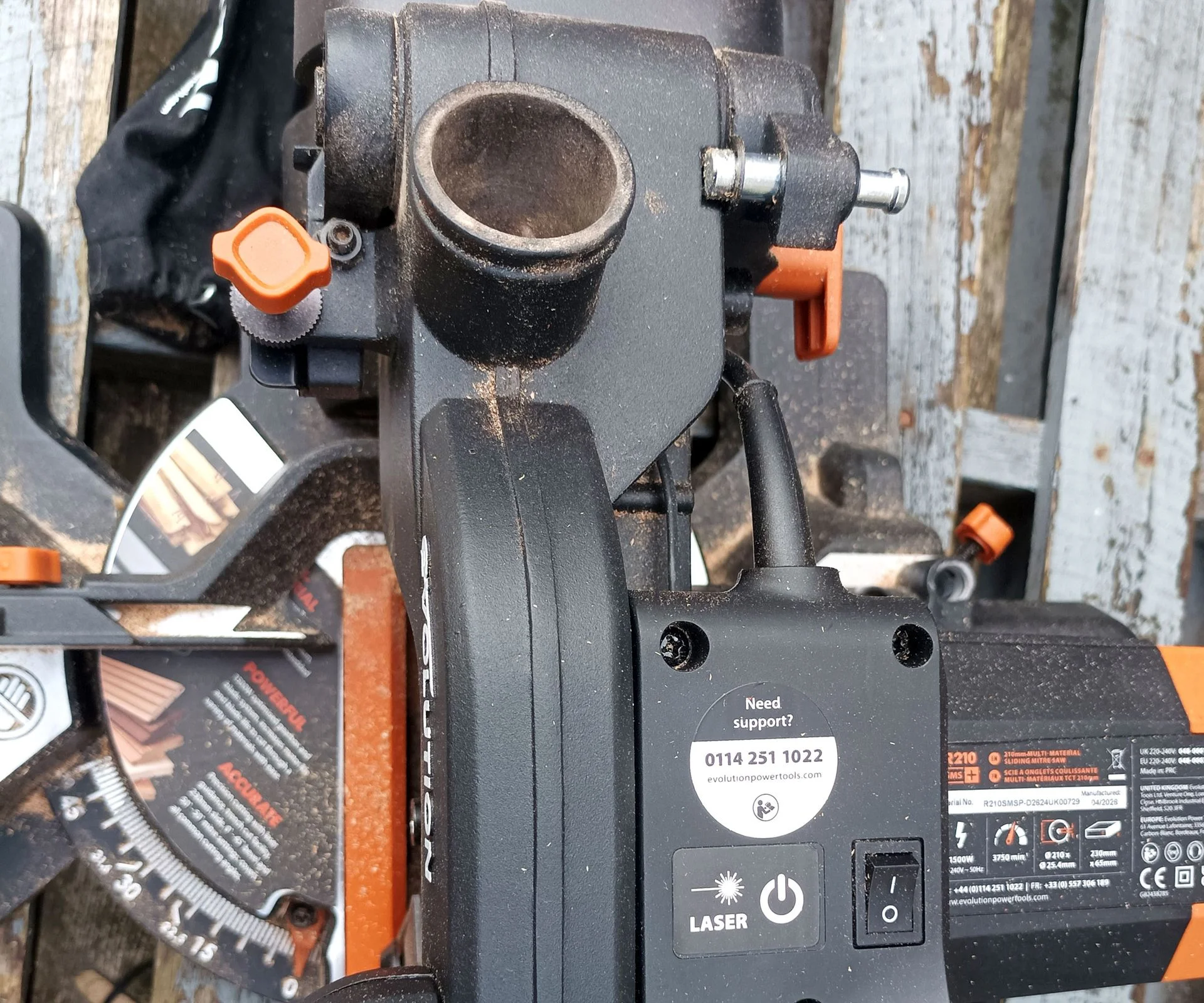

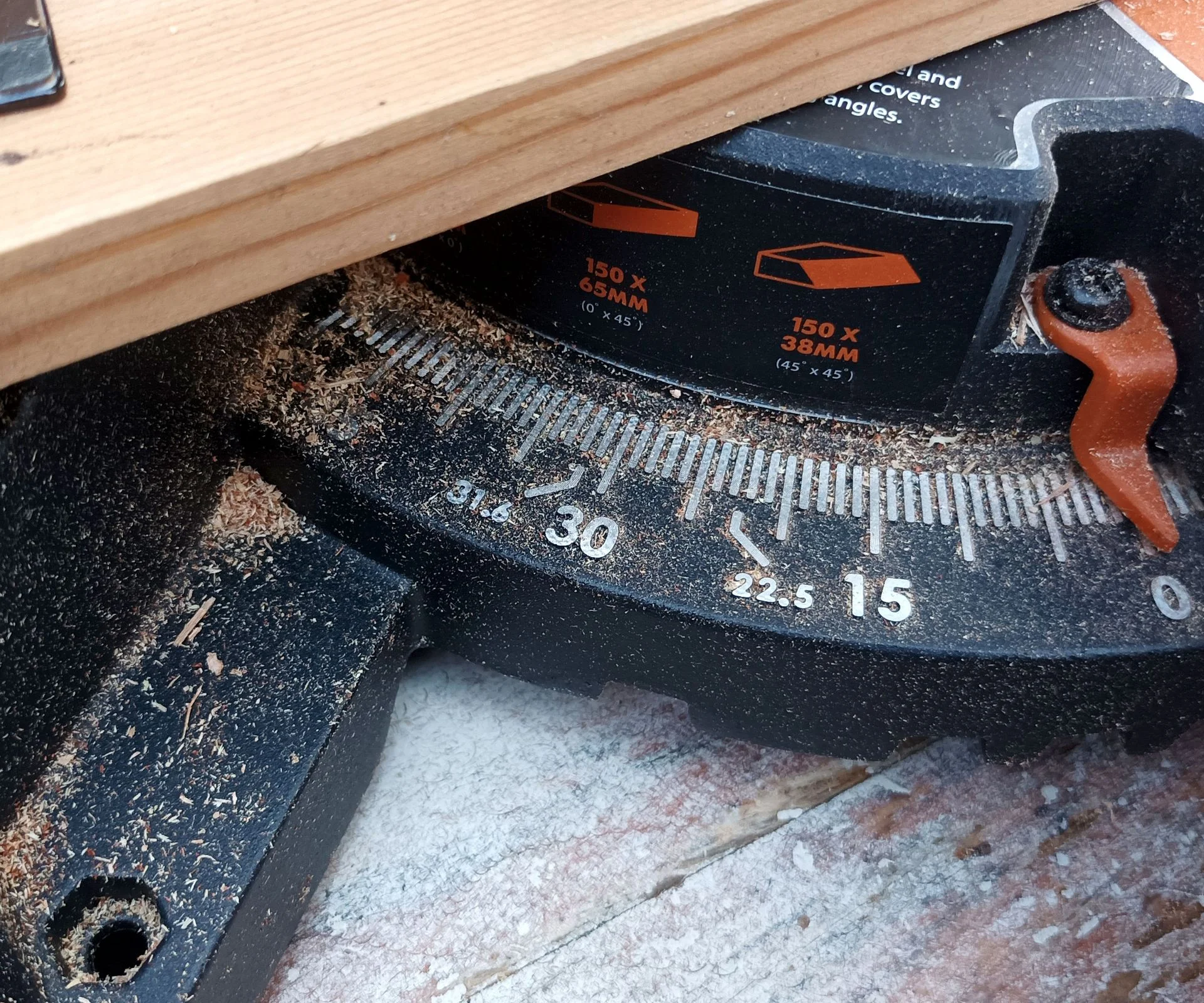

Mitres and bevels were next on my list. I was impressed by the ease of adjusting the bevel lock handle for various angles up to 45 degrees. The available stops for quick angle settings achieved reliable accuracy across all tests. The laser guide also proved useful for precise alignment.

After trying out the original multipurpose blade, I switched to a dedicated wood blade. Unsurprisingly, the wood blade delivered cleaner cuts with less breakout, reaffirming the importance of using the right blade for specific materials.

Should You Purchase the Evolution R210SMS+?

The Evolution R210SMS+ puts itself in the spotlight as a top contender for DIY enthusiasts looking for a reliable mitre saw without breaking the bank. While it does require assembly and initial blade setup, the value provided through its design and performance makes it a noteworthy option.

Simple but well-considered features like cable management, carry handles, and close tolerances showcase thoughtful engineering. Despite not being flawless, the R210SMS+ competes well against higher-priced models, making it an intelligent choice for both novices and seasoned makers alike.

If you're in the market for a versatile mitre saw that delivers on quality and features while managing to remain affordable, the Evolution R210SMS+ should be at the top of your list. You won't find a more satisfactory blend of value and capability in this price range.
